genIE - Match Views

The Match View function is used to ensure that all calling action blocks provide an import view or receive an export view.

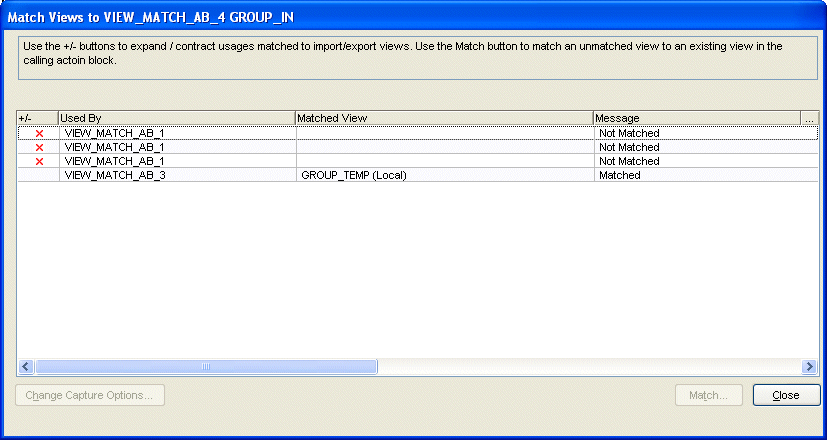

The initial display will show the action blocks that USE the action block that owns the selected import or export view and indicate whether the view is matched or not.

If the view is matched to an import or export view in the calling action block, then you can press on the button to expand the action block to its callers.

If the view is matched to a local or entity action view, then the option is not available. If the view is not matched, the left hand column indicates this with a x. You can then select the row and press the Match button or double-click the row to select an existing view in the calling action block to match to the called action block's import or export view.
